Mercedes Benz VIN Number

mercedes benz

Mercedes-Benz vehicles can be identified from the following numbers:

Location
Mercedes-Benz VIN Number – stamped onto the vehicle, inscribed by laser or ‘roller burnished’ (etched, not cut)
– on the type plate
Production Number – on the body plate / vehicle data plate / production plate
– on the body plate / vehicle data plate / production plate
Engine Number – on the engine block
Gearbox Number – on the gearbox
Radio number (when fitted at the plant) – on the radio and ‘Comand’ system

During business hours it is possible to identify Mercedes Benz VIN Number on the Daimler Data System (VEDOK) available at any Daimler establishment (but not dealerships). The following information can be found by means of the VEDOK system:

– Mercedes-Benz VIN Number
– Production Number
– Engine number
– Gearbox number
– Radio number
– Vehicle registration document number
– Order number

Mercedes Benz VIN Number

Mercedes Benz VIN Number Location

Mercedes-Benz VIN Number

Letter Series (vehicle versions) Location
A 168 / 169 / 170 / 245 / 414 In the engine compartment on the middle of the splash plate, underneath the windscreen
B 116 / 123 / 126 / 199 In the engine compartment above the radiator tank, above the bulkhead between the engine compartment and passenger compartment, or on the scuttle panel, on the right (as seen in the direction of travel) underneath the windscreen (only 1999 until VIN …000417)

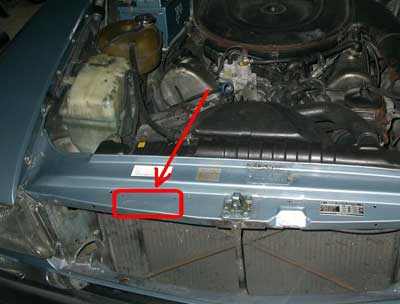

C 107 / 114 / 115
140 armoured
In the engine compartment, on the right-hand side of the radiator yoke, in the direction of travel
D 124 / 129 / 201 In the engine compartment, on the right-hand side of the subframe
E 140 / 197 / 199 (from VIN…418)/ 202 / 203 / 204 / X204 / 207 / 208 / 209 / 210 / 211 / 212 / 219 / 211 armoured in the passenger compartment – on the crossmember beneath the right front seat under the carpet (older models have a large carpet flap near there, newer models only have a small carpet flap)
F 163 / 297 Beneath the sill on the longeron on the front passenger’ side, level with the B-pillar (163) or on the inner face of the right longeron (297)
G 210 armoured / 215 / 220 /

220 armoured

In the passenger compartment, in front of the right rear seat, on the horizontal panel under the seat – concealed by a cover
H 230 In the passenger compartment, behind the front passenger’s seat, behind a plastic flap on the on the cross member, beneath the luggage storage
J 171 In the passenger compartment, laterally on the propellor (drive) shaft tunnel, behind the carpet flap
K 216 / 221 In the passenger compartment, in the middle, near the base of central arm rest of the rear seat – concealed by a flap
L 164 / 251 In the passenger compartment beneath or in front of the right rear seat under a carpet flap or a plastic flap:

–       tip the seat forward on the 164

–       visible between the seat rails on the 251

M 221 armoured In the luggage compartment on the right longeron

Mercedes-Benz VIN Number

SL and SLC Type 107
„E-Class“ Type 114 / 115
S-Class Type 140 armoured

Mercedes-Benz VIN Number Location
mercedes benz  E-Class Type 124
S-Class and SEC Type 126
SL Class Type 129 / 190/190E Type 201
Mercedes-Benz VIN Number Location
A-Class Type 168 / 169
 B-Class Type 245
mercedes benz  Vaneo Type 414
Mercedes-Benz VIN Number Location
C-Class Type 202 / 203 / 204
CLC-Class Type 203
GLK-Class Type X204
CLK-Class Type 208 and Type 209
E-Class Type 210 / 211 / 212
E-Class Coupe Type 207
CLS-Class Type 219
S-Class and SEC/CL-Class Type 140
SLS-AMG-Class Type 197
Mercedes-Benz VIN Number Location
S-Class Type 220 and CL-Class Type 215
– Remove the flap !!
Mercedes-Benz VIN Number Location
S-Class Type 221 / CL-Class Type 216
with or without a ski bag depending on the edition either somewhat higher up or down low behind the central armrest in the rear
Mercedes-Benz VIN Number Location
S-Class Type 221 Special protection (armoured)
VIN is on the right longeron in the luggage compartment
Mercedes-Benz VIN Number Location
SL-Class / Type 230
Push the right-hand seat forwards by operating the switch in the seat back
Open the spare seat right-hand storage compartment
Tip the covering beneath the storage compartment to the front and remove it
Mercedes-Benz VIN Number Location
SLK-Class Type 170
Mercedes-Benz VIN Number Location
SLK-Class Type 171
Slide the front passenger’s seat to the front and lift up the carpet flap on the drive shaft tunnel
Mercedes-Benz VIN Number Location
CLK-GTR Type 297
 is on the right longeron on the inside (on the passenger’s side)
Mercedes-Benz VIN Number Location
SLR McLaren Type 199
(until VIN …000417)
Mercedes-Benz VIN Number Location
SLR McLaren Type 199
(from VIN …000418)
Mercedes-Benz VIN Number Location
M-Class Type 163
Mercedes-Benz VIN Number Location
M-Class Type W164
Mercedes-Benz VIN Number Location
R-Class Type 251
VIN under a plastic flap (for Japan and in general as of summer 2006)
– VIN under perforation in the carpet (until summer 2006 for all countries other than Japan)
Mercedes-Benz VIN Number Location
GL-Class Type X164
Mercedes-Benz VIN Number Location
Note:e.g. E-class, W/S 212
Depending on the model, the carpet flap over the Mercedes Benz VIN Number cannot be completely opened even if the seat is retracted as far as possible. So that the VIN is rather difficult to check.

For the Mercedes Benz Gl-Class please note:

In the period from 15.12.06 to 15.02.07, approximately 5700 vehicles of the GL-Class (VIN series …7A217443 to …7A238870) were produced. On these vehicles the Mercedes Benz VIN Number was displaced by about 5cm, so that the VIN is no longer located directly under the carpet flap.

Mercedes Benz VIN Number Appearance and dimensions

Since 1972, in Mercedes-Benz vehicles the Mercedes star has always appeared at the left and right extremities of the VIN (Exception: SLR McLaren). One point of the star always points towards the top. In the Mercedes-Benz VIN Number sequence there are never any filler characters.

Stamped Mercedes Benz VIN Number (with the corresponding numbers as stamped)

Stamped Mercedes-Benz VIN Number

Stamped Mercedes-Benz VIN Number
A peculiarity on A-Class vehicles made in Brazil:
The year of manufacture is additionally placed on top of the Mercedes Benz VIN Number

Mercedes Benz VIN Number “burned” on by laser

only used on the 140 series

The European Mercedes-Benz VIN Number
The European Mercedes Benz VIN Number structure
USA Mercedes-Benz VIN Number
The USA Mercedes Benz VIN Number structure

The new form of Mercedes-Benz VIN Number lettering

Used by and by in all plants as from 1 June 1996.

Mercedes-Benz VIN Number lettering Mercedes-Benz VIN Number lettering

An example of a Mercedes Benz VIN Number lettering from the Tuscaloosa works (the VIN was stamped before painting and is therefore painted)
N.B.: Vehicles from the Graz works (4-matic vehicles) also have a painted VIN.

Example of a painted Mercedes Benz VIN Number from the Tuscaloosa works:

Mercedes-Benz VIN Number Mercedes-Benz VIN Number

Close-up images of the painted Mercedes-Benz VIN Number :

Mercedes-Benz VIN Number Mercedes-Benz VIN Number Mercedes-Benz VIN Number

Example of a Mercedes-Benz VIN Number (from the C 216), as made in the Sindelfingen works after painting. There are still some metal particles visible around the VIN:

Mercedes-Benz VIN Number Mercedes-Benz VIN Number

Visible Mercedes Benz VIN Number

Visible Mercedes Benz VIN Number are mandatory in the USA and some other countries. On vehicles destined for this market, the Mercedes-Benz VIN can be found on the lower left edge of the windscreen behind a small clear spot in the shading. On some series, vehicles destined for other markets have the clear spot painted over with black paint before the windscreen is fitted. However sometimes there is a black blank sticker stuck on at this location.

Exception: With the C-Class sedans (W204), which in the work Sindelfingen (11. Put the work letter VIN A) were produced, a Visible VIN was introduced to 26.03.2008 in all vehicles (also European delivery). Since the 27.03.2008 only the vehicles with code 989 or code receive 986 (US VIN structures) the Visible Mercedes-Benz VIN Number stuck – all the others show at this point a black blank foil on.
The foil is produced with a customary printer, so that the typography as well as the precision of the pressure deviates from the registrations on the type signs of newer generation (lasered).

Visible Mercedes-Benz VIN Number
Before the windscreen is fitted
(Examples from the C 219 and W164)
Visible Mercedes-Benz VIN Number
After the windscreen is fitted
(Examples from the R 171 and C 209)

Visible Mercedes-Benz VIN Number Visible Mercedes-Benz VIN Number

Visible Mercedes-Benz VIN Number
Before the windscreen is installed; black blank sticker (from the C 216)
Visible Mercedes-Benz VIN Number
After put in the windscreen, C-Class sedan W204 from work Sindelfingen
(until 27.03.08 for all markets immediately)

Mercedes-Benz VIN Number Decoder

Mercedes Benz VIN Number Decoder the Series 107 / 123 / 124 / 126 / 129 / 140 / 201 / 202

Mercedes Benz VIN Number Decoder Series From 1995

USA Mercedes Benz VIN Number Decoder

U.S. Mercedes Benz VIN Decoder on All Activity Vehicles

Mercedes Tracking System

GPS-Geolocation via „Mercedes me“

Since September 2014 the Daimler AG offers the optional equipment “Remote online” as a part of the “Mercedes-me/Connect me” product range, for various Mercedes models
(starting in 09/14 with the W/S205, followed with the models W246, C218 since 11/2014, the W/S212 since 03/2015, the W/X166 since 06/2015 and since Fall 2015 in nearly all other models too).
At the moment this optional equipment can be ordered in the following countries: AT, BE, CH, CZ, DE, ES, FR, GB, HU, IR, IT, LU, NL, PL, SK – more EU countries are in the planning stage.
Thereby a geolocation is in all above mentioned countries possible, in some cases beyond that. Oversea countries are currently excluded.
The necessary equipment for this is a communication module (Code 06U, since 2015 in the most models standard equipment) as well as “Remote-Online” (Code05U, delivered with the Command-Online-Generation NTG5, Code531).
With “Remote online” customers gain access via PC or Smartphone-App to their car and be able to request car status information (petrol, mileage, range, etc.), lock doors, activate of pre-heating, “Geofencing” (warning if vehicle enters/leaves a defined area) , above all else it is able to locate the vehicle (even with switched of engine) and can provide the possibility of Geolocation.
Procedure:
1.) The owner (Master-user) has to set an account at the Mercedes-me service website and register the vehicle.
2.) The vehicle has to be connected with this account at the local Mercedes dealer.
3.) The Geolocation option has to be activated in the Mercedes-me / Connect-me settings.
4.) The owner is able to localize his car all over Europe. In case of a car theft he has furthermore the possibility to localize the car by himself or via the Police.
HINTS:
– A Remote online accessible vehicle, which is not connected to a Mercedes-me/Connect-me account, can be connected to the account even after the theft. But it is mandatory that the vehicle is not locked in the manufacturers database via INVEX.
– The geo data transfer is not permanent, but only approximately every 2 minutes.
– The driver can see the possibility of the Geolocation as an icon in the navigation display, but doesn’t recognize if he is just being located.
Illustration of some possibilities of Mercedes-me / Connect-me / Remote online

Illustration of some possibilities of Mercedes-me / Connect-me / Remote online

Mercedes Tracking System

Mercedes Benz Vehicle Keys

Depending on the model, Mercedes-Benz keys have been able to give readouts from about 1989, i.e., the locking number is stored in the key transponder. To obtain a readout of the locking number and an attribution to a VIN the actual key must be forwarded to Daimler Chrysler AG, Dept. VP/VG, at the address above.?

So,The transponder can be read out by them, so that normally after about a week, including time in the post the results will arrive.
